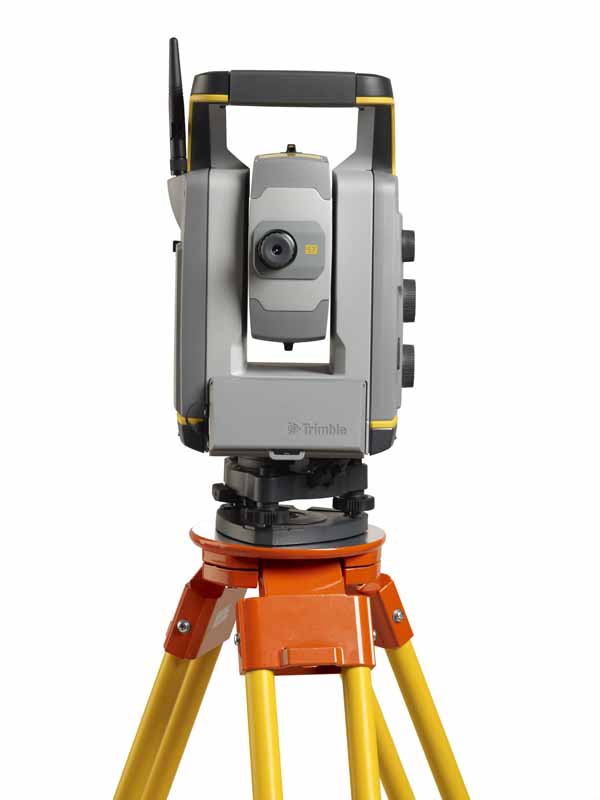

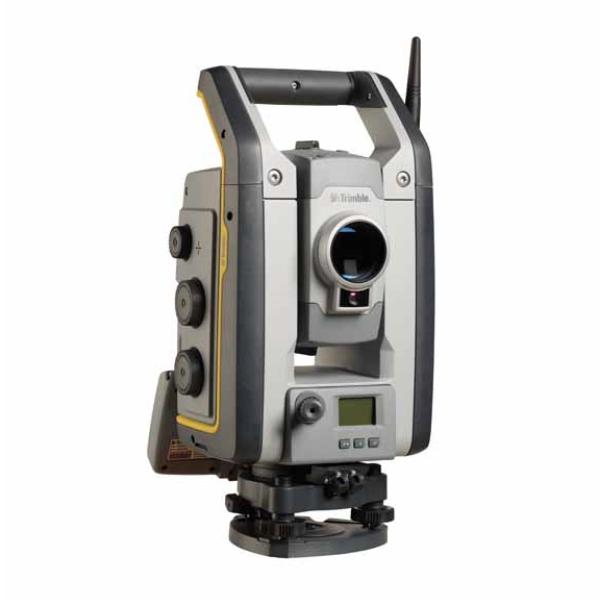

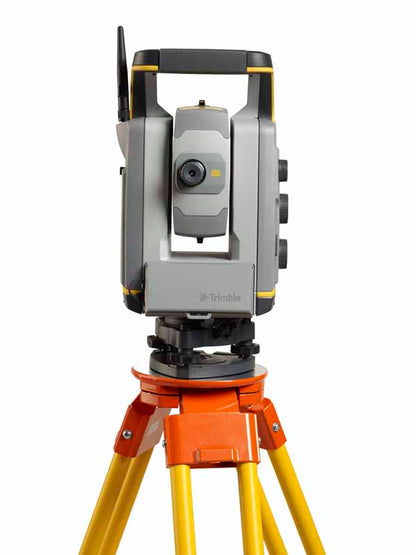

Trimble S7 Robotic DR Plus Total Station

Trimble S7 Robotic DR Plus Total Station

1", 2", 3", or 5" Angular Accuracy
DR PLUS EDM Technology
1.0 mm + 2 ppm Prism / 2.0 mm + 2 ppm DR EDM Accuracy

The Trimble S7 combines surveying, imaging, and scanning in a single instrument. Collect the data you need for digital terrain models (DTMs), volume calculations, and topographic measurements, and document your site with imagery from Trimble VISION technology, all with Trimble Access field software and Trimble Business Center office software.

  • Surveying, imaging, and scanning in one powerful solution
  • Trimble VISION technology for video robotic control, scene documentation, and photogrammetric measurements
  • Trimble DR Plus EDM for long range and accuracy
  • Intuitive Trimble Access field software and Trimble Business Center office software for quick data processing

Compatible Controllers, Office Software, and Field Software

Choose from a variety of Trimble controllers operating the feature-rich, intuitive Trimble Access field software. Streamlined workflows like Roads, Utilities, and Pipelines guide crews through common project types, helping to get the job done faster with fewer distractions. Trimble Access workflows can also be customized to fit your needs.

Back in the office, trust Trimble Business Center software to help you check, process, and adjust your optical and GNSS data in one software solution.

Features

Key features of the Trimble S7:

  • SureScan™ technology, for faster scan data collection and processing by targeting the right points instead of simply more points
  • MagDrive servo technology, for smooth, silent operation and quick measurements without compromising accuracy
  • FineLock technology, with pointing precision under 1 mm (0.003 ft) at 300 m (980 ft), a passive prism range of 20 m to 700 m (65 ft to 2,297 ft), and a minimum prism spacing of 0.5 m (1.65 ft) at 200 m (656 ft). Range and accuracy depend on atmospheric conditions, prism size, and background radiation.
  • Trimble Sentinel real-time location information, with alerts if the instrument leaves a job site or experiences unexpected shock (functionality and availability dependent on region)

Field Specifications

  • Dust and water proofing: IP65
  • Operating temperature: -20 °C to +50 °C (-4 °F to +122 °F)
  • Operating time: up to 6.5 hours on one internal battery
  • Prism mode range: 2,500 m (8,202 ft)
  • DR mode range: 1,300 m (4,265 ft) on a white card (90% reflective) in normal conditions
  • Scanning range: 1 m up to 250 m (3.28 ft to 820 ft), up to 15 points per second, varies with target color, atmospheric conditions, and scanning angle
