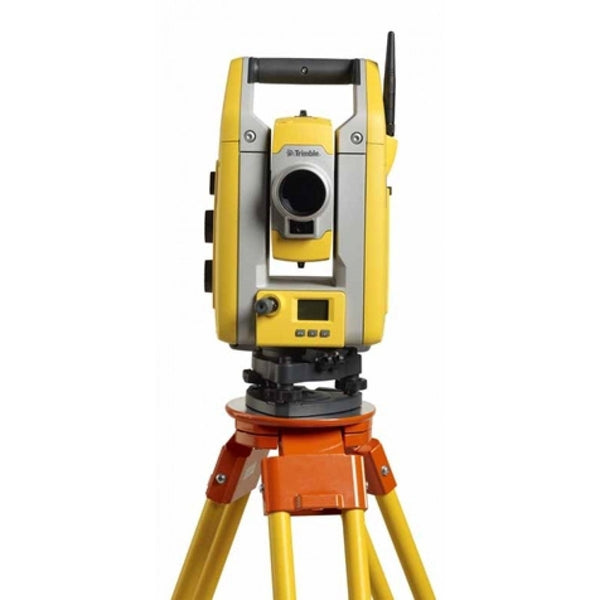

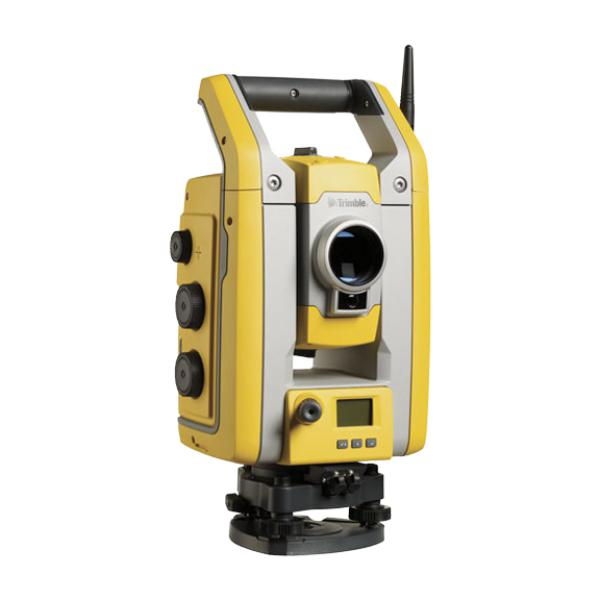

Trimble S5 Robotic DR Plus Total Station
Trimble S5 Robotic DR Plus Total Station
1", 2", 3", or 5" Angular Accuracy
DR PLUS EDM Technology
1.0 mm + 2 ppm Prism / 2.0 mm + 2 ppm DR EDM Accuracy
Count on the Trimble S5 total station to make your job easier, day after day, project after project.
Built on proven Trimble technologies, including Trimble SurePoint™ technology, MagDrive™ technology, and our DR Plus EDM, this is the no-nonsense workhorse that works efficiently and dependably while maintaining the highest possible accuracy.
• Everything you need to perform survey campaigns
• Measure further and faster with the Trimble DR Plus EDM
• Complete field-to-office solution for quick data capture and processing
• Seamless integrated surveying with the Trimble GNSS receivers
• Trimble Sentinel real-time location information, with alerts if the instrument leaves a job site or experiences unexpected shock (functionality and availability dependent on region)
Field Specifications
• Dust and water proofing: IP65
• Operating temperature: -20 °C to +50 °C (-4 °F to +122 °F)
• Operating time: up to 7.5 hours on one internal battery
• Prism mode range: 2,500 m (8,202 ft)
• DR mode range: 1,300 m (4,265 ft) on a white card (90% reflective) in normal conditions
Compatible Software
Choose from a variety of Trimble controllers operating the feature-rich, intuitive Trimble Access field software. Streamlined workflows guide crews through common project types, helping to get the job done faster with fewer distractions. Trimble Access workflows can also be customized to fit your needs.
Back in the office, trust Trimble Business Center software to help you check, process, and adjust your optical, leveling, and GNSS data in one software solution. No matter what Trimble instruments you use in the field, you can trust that Trimble Business Center office software will help you generate industry-leading deliverables.
